Diamond X Series Dual Band 2m and 70cm Antennas

Diamond X-50N

The Diamond X-50N is a dual-band base station antennas designed for use in amateur radio and other VHF/UHF applications.

• Frequency Range: The Diamond X-50N is also a dual-band antenna designed for the 2-meter (144-148 MHz) and 70-centimeter (430-450 MHz) amateur radio bands.
• Gain: The X-50N provides 4.5 dB gain on 2 meters and 7.2 dB gain on 70 centimeters.
• Length: It has a length of approximately 5.9 feet (1.8 meters)
• Connector: The X-50N typically comes with an SO-239 (UHF female) connector, which is more common in amateur radio installations.

Surge Protection

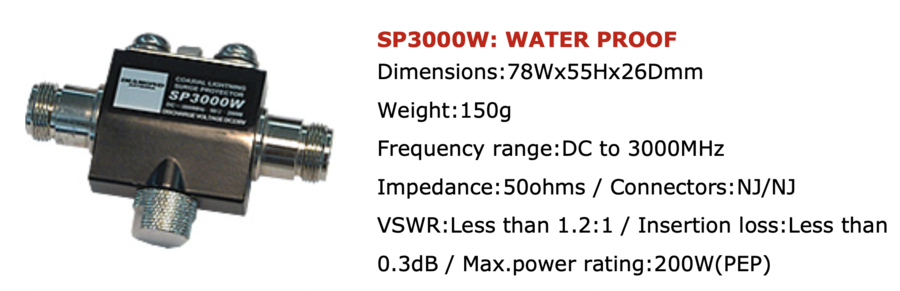

Diamond Surge Protection - SP3000W: Water Proof

The Diamond SP3000W is a type of coaxial lightning surge protector designed for use in amateur radio and other RF (radio frequency) applications. Here's what it does and its main features:

Function: The Diamond SP3000W serves as a protective device to help safeguard radio equipment, such as transceivers and antennas, from the potentially damaging effects of lightning strikes or static discharge. Lightning surge protectors are essential for outdoor installations where antennas are exposed to the elements and are at risk of attracting electrical discharges.

Key Features:

Surge Protection: The primary function of the SP3000W is to protect your valuable radio equipment from voltage surges caused by lightning strikes or electrostatic discharge. It provides a path for excess electrical energy to safely dissipate to ground, thereby reducing the risk of damage. Frequency Range: This surge protector is designed to operate within a specific frequency range, typically matching the frequency bands used in amateur radio or other RF applications. The frequency range may vary depending on the model and specifications. Connector Types: The SP3000W comes with connectors on both ends, allowing you to connect it in-line between your antenna and radio equipment. The connectors are usually chosen to match the type used in your setup, such as N-type, SO-239, or other common RF connectors. Grounding: Proper grounding is crucial for the effective operation of a lightning surge protector. The SP3000W typically includes a grounding lug or terminal for connecting to a suitable ground rod or grounding system. Adequate grounding helps ensure that the surge protector can safely divert excess energy to the ground. Weatherproof: Since these devices are often installed outdoors, they are typically designed to be weatherproof and resistant to environmental conditions. Ease of Installation: Surge protectors like the Diamond SP3000W are designed for relatively straightforward installation, usually requiring the device to be placed in-line between the antenna and the radio equipment. Please note that the specific details and features of surge protectors can vary by manufacturer and model. It's essential to carefully read the product's documentation and follow the manufacturer's installation and grounding recommendations to ensure effective lightning protection for your radio equipment. Additionally, you may want to check for any updates or newer models that may have been released since my last knowledge update in 2021.
